Lab 4: Tracing Programs

The goal of this lab is to practice tracing the execution of recursive and dynamic programs.

Instructions

We encourage you to work with a partner. It is probably easiest to write your answers on paper.

Task 1: Trace Naïve Fibonacci

Consider the following naïve recursion code for Fibonacci numbers:

public static long F(int n) {
    if (n == 0) return 0;
    if (n == 1) return 1;
    return F(n-1) + F(n-2);
}

Trace the code and draw the recursion tree for F(5).

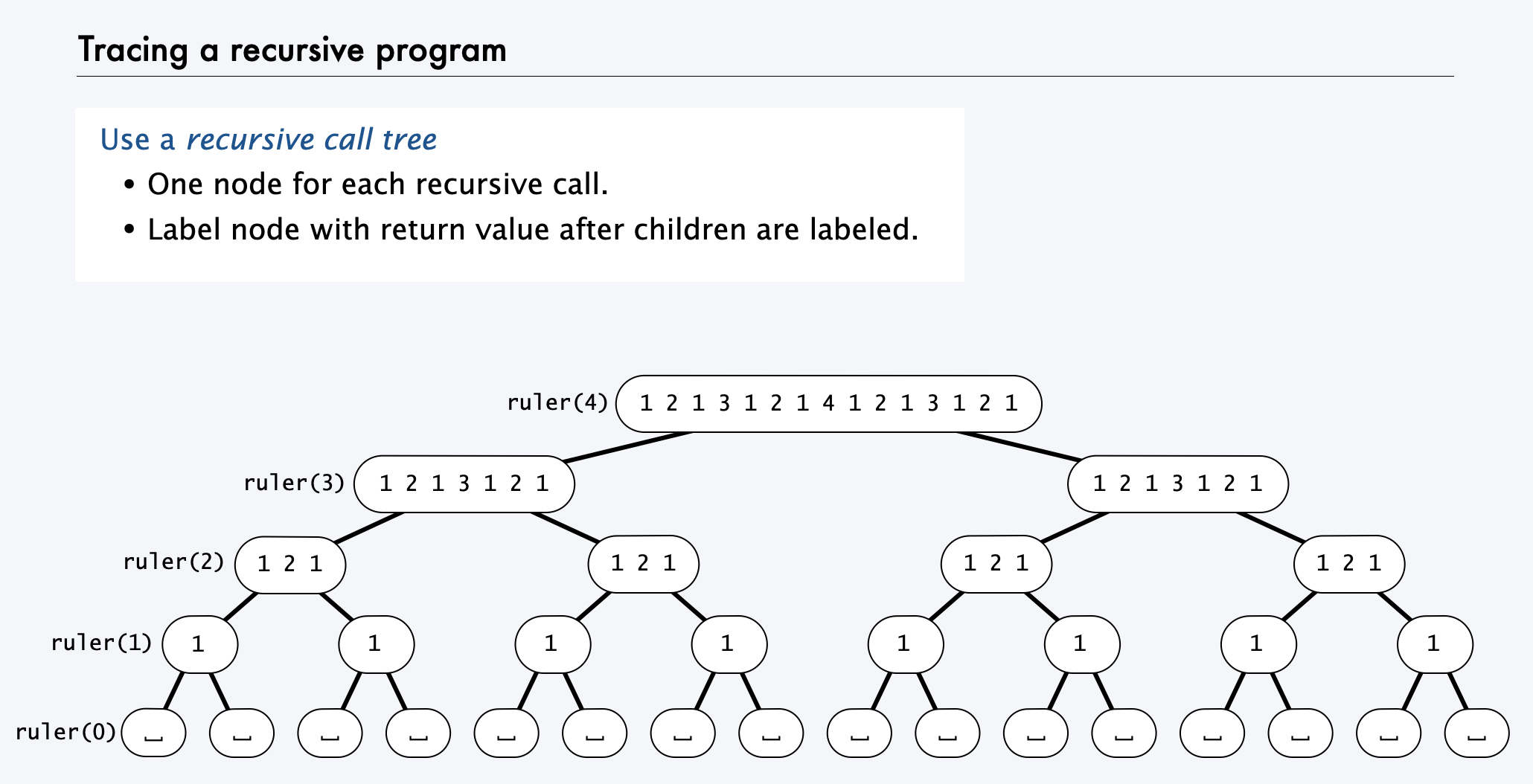

As an example of a recursion tree, consider the ruler(4) recursion tree from lecture:

Ruler recursion tree

Task 2: Trace Dynamic Fibonacci

Consider the following dynamic programming code for Fibonacci numbers:

long[] F = new long[n+1];
F[0] = 0;
F[1] = 1;
for (int i = 2; i <= n; i++)
    F[i] = F[i-1] + F[i-2];

Trace the code for n being 5, and write down the values of the elements in array F.

Task 3: Trace Recursive Dynamic Fibonacci

Consider the following recursion code with memoization for Fibonacci numbers.

static long[] memo = new long[100];
public static long F(int n)
{
    if (n == 0) return 0;
    if (n == 1) return 1;
    if (memo[n] == 0)
        memo[n] = F(n-1) + F(n-2);
    return memo[n];
}
  1. Trace the code and draw the recursion tree for F(5)
  2. Keep all the statements except change memo[n] = F(n-1) + F(n-2); to memo[n] = F(n-2) + F(n-1);. This just switches the positions for F(n-1) and F(n-2). Now trace the slightly changed code and draw the new recursion tree for F(5).

Task 4: Dynamic Coin Change

Consider the dynamic programming code for coin change:

\[c(i,j) = \begin{cases} 0 & \text{if } j = 0 \\ \frac{j}{d_1} & \text{if } i = 1 \\ \infty & \text{if } j < 0 \\ \text{min}\Big(c(i - 1, j), 1 + c(i, j - d_i)\Big) & \text{otherwise} \\ \end{cases}\]
  1. Draw the 2D array C[i, j], and trace the algorithm for a change amount of 8 and a coin set {1, 4, 5}.
  2. The mathematical definition above for the function \(c(i, j)\) has a problem for the base case \(i = 1\). It works when the first coin value \(d_1\) is 1. But if \(d_1\) is not 1, the base case needs to be changed.
    • Consider a change amount of 8 and the coin set {2, 4, 5}. Trace using the definition above for \(c(i, j)\) to identify the problem.
    • Try to fix the problem by changing the \(c(i, j)\) definition for the base case \(i = 1\). Check your fix by tracing your revised definition with an amount of 8 and the coin set {2, 4, 5}.

Task 5: Mutually Recursive Functions

Consider the following pair of mutually recursive functions:

public static int f(int n) {
    if (n == 0) return 0;
    return f(n-1) + g(n-1);
}

public static int g(int n) {
    if (n == 0) return 0;
    return g(n-1) + f(n);
}

What is the value of g(2)?

Submit

Create a .pdf file and upload it to Gradescope. It should contain:

/******************************************************************************
 ***   You and your partner's name, if any.                                 ***
 ******************************************************************************/


/******************************************************************************
 ***   Do you attest that this work is your own, in accordance with the     ***
 ***   statement on academic integrity in the syllabus?                     ***
 ******************************************************************************/

Yes or no?


/******************************************************************************
 ***   List any other comments here.                                        ***
 ******************************************************************************/

This will only be graded for completion, as part of your attendance and participation grade.
