Homework 8: Project Milestone: ER Diagram

For this project milestone, you will create a complete ER diagram for your web application.

Of course, you should work with your project team.

ER Diagram

Your ER diagram should include all:

• Entities and their attributes
• Relationships and their attributes, if any
• Key attributes
• Relationship cardinalities

You may also find it helpful to write down any assumptions you make in plain English.

For this project to be interesting, your project must contain at least four entities. If you cannot think of at least four entities, please contact the instructor, and we will discuss.

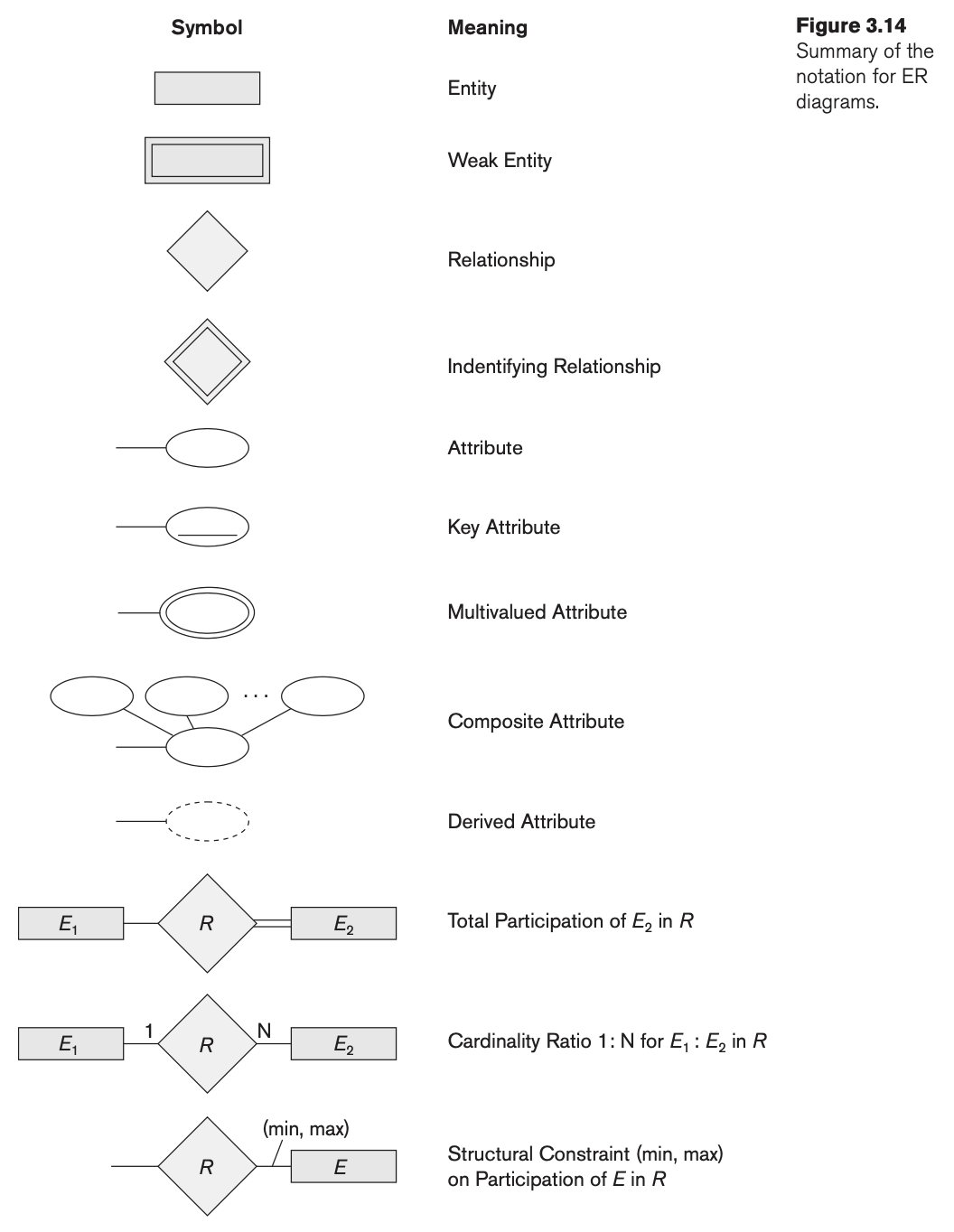

Refer to Figure 3.14, which summarizes the notation used in ER diagrams. You must use the appropriate notation.

Submit

Upload a PDF containing your ER diagram and explaining any assumptions. Only one team member should upload the assignment.

Your ER diagram will be graded for correctness and completeness.
