Lab 4: Tracing Programs

The goal of this lab is to practice tracing the execution of recursive and dynamic programs.

Instructions

We encourage you to work with a partner. It is probably easiest to write your answers on paper.

Task 1: Trace Naïve Fibonacci

Consider the following naïve recursion code for Fibonacci numbers:

public static long F(int n) {
    if (n == 0) return 0;
    if (n == 1) return 1;
    return F(n-1) + F(n-2);
}

Trace the code and draw the recursion tree for F(5).

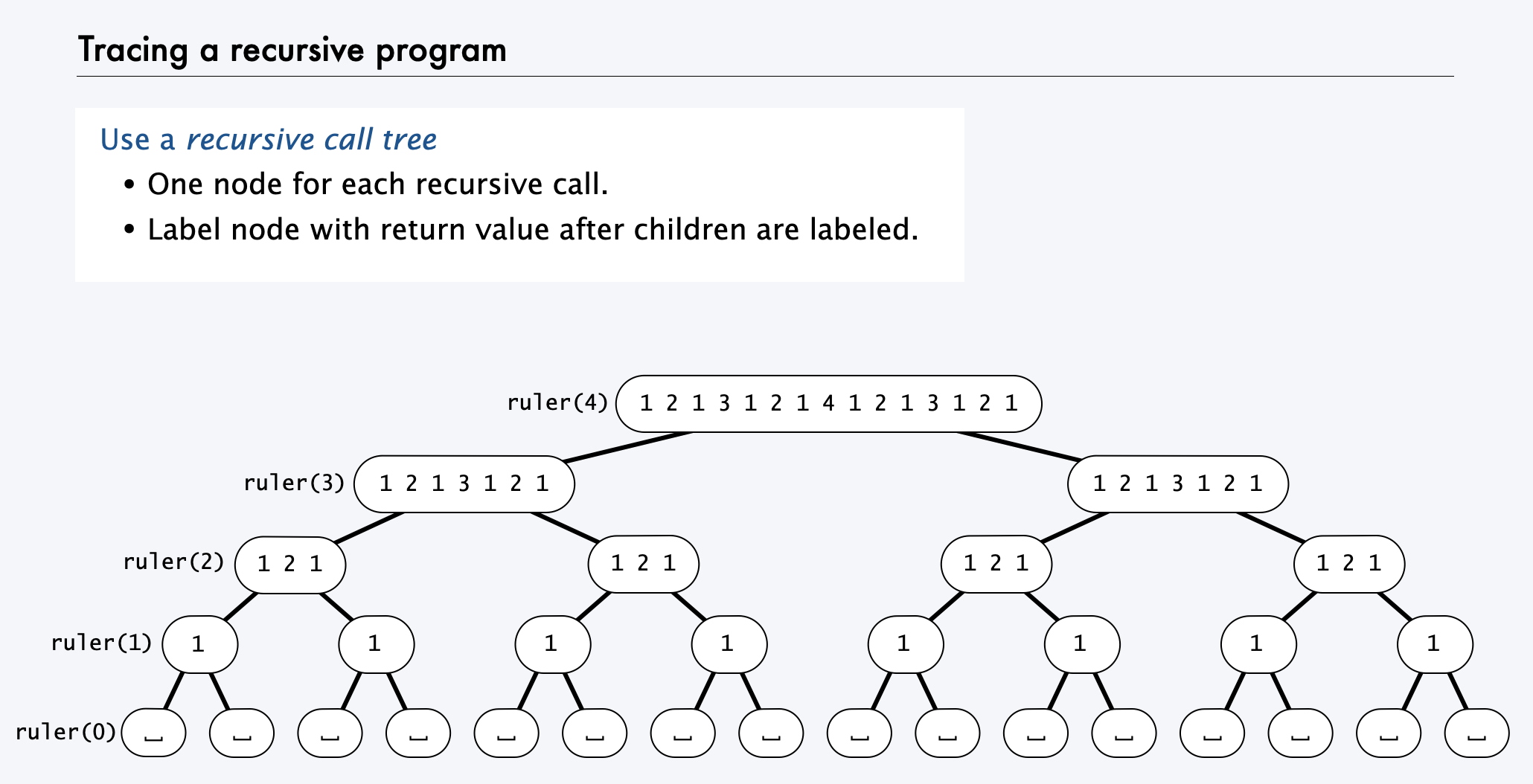

As an example of a recursion tree, consider the ruler(4) recursion tree from lecture:

Task 2: Trace Dynamic Fibonacci

Consider the following dynamic programming code for Fibonacci numbers:

long[] F = new long[n+1];
F[0] = 0;
F[1] = 1;
for (int i = 2; i <= n; i++)
    F[i] = F[i-1] + F[i-2];

Trace the code for n being 5, and write down the values of the elements in array F.

Task 3: Trace Recursive Dynamic Fibonacci

Consider the following recursion code with memoization for Fibonacci numbers.

static long[] memo = new long[100];
public static long F(int n)
{
    if (n == 0) return 0;
    if (n == 1) return 1;
    if (memo[n] == 0)
        memo[n] = F(n-1) + F(n-2);
    return memo[n];
}

1. Trace the code and draw the recursion tree for F(5)
2. Keep all the statements except change memo[n] = F(n-1) + F(n-2); to memo[n] = F(n-2) + F(n-1);. This just switches the positions for F(n-1) and F(n-2). Now trace the slightly changed code and draw the new recursion tree for F(5).

Task 4: Mutually Recursive Functions

Consider the following pair of mutually recursive functions:

public static int f(int n) {
    if (n == 0) return 0;
    return f(n-1) + g(n-1);
}

public static int g(int n) {
    if (n == 0) return 0;
    return g(n-1) + f(n);
}

What is the value of g(2)?

Submit

Create a .pdf file and upload it to Gradescope. It should contain:

• Your responses to the questions above
• A filled-in version of the information below:

/******************************************************************************
 ***   You and your partner's name, if any.                                 ***
 ******************************************************************************/


/******************************************************************************
 ***   Do you attest that this work is your own, in accordance with the     ***
 ***   statement on academic integrity in the syllabus?                     ***
 ******************************************************************************/

Yes or no?


/******************************************************************************
 ***   List any other comments here.                                        ***
 ******************************************************************************/

This will only be graded for completion, as part of your attendance and participation grade.
