Lab 9: Arrays vs Linked Lists

The goal of this lab is to practice analyzing the performance of data structures. Specifically, you will compare the performance characteristics of Java Arrays and LinkedLists.

Instructions

We encourage you to work with a partner.

Task 1: Review Array and LinkedList

For the Array and LinkedList data types, I have include sample code for:

• Random initialization
• Retrieving an element at an index
• Retrieving the index of an element
• Inserting an element into the middle

Carefully review the example code below – be sure to ask questions if you don’t understand parts of it.

Array

You are probably most familiar with Java Arrays. They can be defined using literals, and support the square-bracket indexing notation. Notice that we import java.util.Arrays and java.lang.reflect.Array to get access to some helper methods. We need java.util.ArrayList for the element insertion.

import java.util.ArrayList;
import java.util.Arrays;
import java.lang.reflect.Array;

// Shortcut initialization, using literals
Double [] d1 = {1.0, 1.1, 1.2, 1.3};
// Alternative initialization
Double [] d2 = new Double[4];
d1[0] = 1.0;
d1[1] = 1.1;
d1[2] = 1.2;
d1[3] = 1.3;

// Retrieving an element at an index, using square-brackets
System.out.println(d1[1]);
// Retrieving an element at an index, using a method
System.out.println(Array.get(d1, 1));

// Sorting the array (this is needed, or else the binary search won't work)
Arrays.sort(d1);

// Retrieving the index of an element
System.out.println(Arrays.binarySearch(d1, 1.1));

// Insert an element into the middle. This is complicated because the length
// of an Array is fixed when it is initialized, so we must:
// 1. Copy the Array into an ArrayList
// 2. Perform the insertion there
// 3. Convert the ArrayList back into an Array
// It's okay if you find this confusing - it is confusing!
ArrayList<Double> d1_temp = new ArrayList<Double>(Arrays.asList(d1));
d1_temp.add(d1.length / 2, 2.0);
d1 = d1_temp.toArray(new Double[5]);

Documentation:

• java.util.ArrayList
• java.util.Arrays
• java.lang.reflect.Array

LinkedList

We talked about linked lists in lecture. Java’s implementation is of a “doubly-linked” list, but otherwise it is quite similar to what we discussed.

import java.util.Comparator;
import java.util.LinkedList;

// Initialization
LinkedList<Double> d = new LinkedList<Double>();
d.addLast(1.0);
d.addLast(1.1);
d.addLast(1.2);
d.addLast(1.3);

// Retrieving an element at an index
System.out.println(d.get(1));

// Sorting the list
d.sort(Comparator.naturalOrder());

// Retrieving the index of an element
System.out.println(d.indexOf(1.1));

// Insert an element into the middle
d.add(d.size() / 2, 2.0);

Documentation:

• java.util.Comparator
• java.util.LinkedList

Task 2: Complete ArrayExperiments.java

First, download the starter files: arrays-vs-linked-lists.zip

Next, you will complete the ArrayExperiments.java program. This program should calculate how long it takes to perform different operations using Arrays.

ArrayExperiments accepts two parameters: the size of the Array and the number of experiment trials to run. It should run the number of trials specified, then print the average time taken to run a single trial. The program is mostly complete, but there is one TODO, which indicates code you will need to write.

Carefully read the ArrayExperiments.java, and make sure you understand how it works. Noticed that we use System.nanoTime to time the operations – this provides greater precision than the Stopwatch class provided by the textbook authors. We need this extra precision because some of the operations we are timing are extremely fast.

import java.util.Arrays;

public class ArrayExperiments {

    public static Double[] initialize(int size) {
        // An array of random doubles
        Double[] d = new Double[size];
        for (int i = 0; i < size; i++) {
            d[i] = StdRandom.uniform();
        }
        return d;
    }

    public static long retrieve_by_index(Double[] d) {
        int i = (int) (StdRandom.uniform() * d.length);
        long startTime = System.nanoTime();
        Double r = d[i];
        return (System.nanoTime() - startTime);
    }

    public static long retrieve_by_element(Double[] d) {
        Double r = d[(int) (StdRandom.uniform() * d.length)];
        long startTime = System.nanoTime();
        // TODO Find element r in Array d using Arrays.binarySearch()
        return (System.nanoTime() - startTime);
    }

    public static void main(String[] args) {
        int size = Integer.parseInt(args[0]);
        long trials = Long.parseLong(args[1]);

        Double[] d = initialize(size);

        System.out.println("Timing retrieval by index...");
        long index_retrieval = 0;
        for (long t = 0; t < trials; t++) {
            index_retrieval += retrieve_by_index(d);
        }
        System.out.println(
                "Retrieval by index: " + (index_retrieval / ((double) trials))
                        + " nanoseconds on average");

        System.out.println("Sorting array...");
        Arrays.sort(d);

        System.out.println("Timing retrieval by element...");
        long element_retrieval = 0;
        for (long t = 0; t < trials; t++) {
            element_retrieval += retrieve_by_element(d);
        }
        System.out.println(
                "Retrieval by element: " + element_retrieval / ((double) trials)
                        + " nanoseconds on average");

    }
}

When the program is finished, it should work like this:

> java-introcs ArrayExperiments 500000 10000000
Timing retrieval by index...
Retrieval by index: 30.5145226 nanoseconds on average
Sorting array...
Timing retrieval by element...
Retrieval by element: 467.0542783 nanoseconds on average

The program already supports timing “retrieval of an element from a random index”. You simply need to finish the retrieve_by_element method, which will time “retrieving the index of a random element”.

Task 3: Write LinkedListExperiments.java

Next, you will write LinkedListExperiments.java. This program will be very similar to ArrayExperiments.java, except that it will use LinkedLists instead of Arrays. We recommend modifying a copy of ArrayExperiments.java to use LinkedList operations.

Task 4: Estimate Running Time and Runtime Complexity

Next, you will run experiments to determine the growth rate of the operations on Arrays and LinkedLists. Specifically, your goal is to determine $b$ in this equation:

Where $b = \text{log}_2(t_N \div t_{N/2})$, with $t_N$ representing the time it takes to perform the operation on an Array or LinkedList of size $N$, and $t_{N/2}$ representing the time it takes to perform the operation on a data structure half that size.

Hint: A reminder from algebra class:

Hint: The $a N^b$ formula may not describe the growth rate of all operations. If this is the case, try plotting a graph of Size and Time, and simply give your best guess for the growth rate.

Array: Retrieval of an element by index

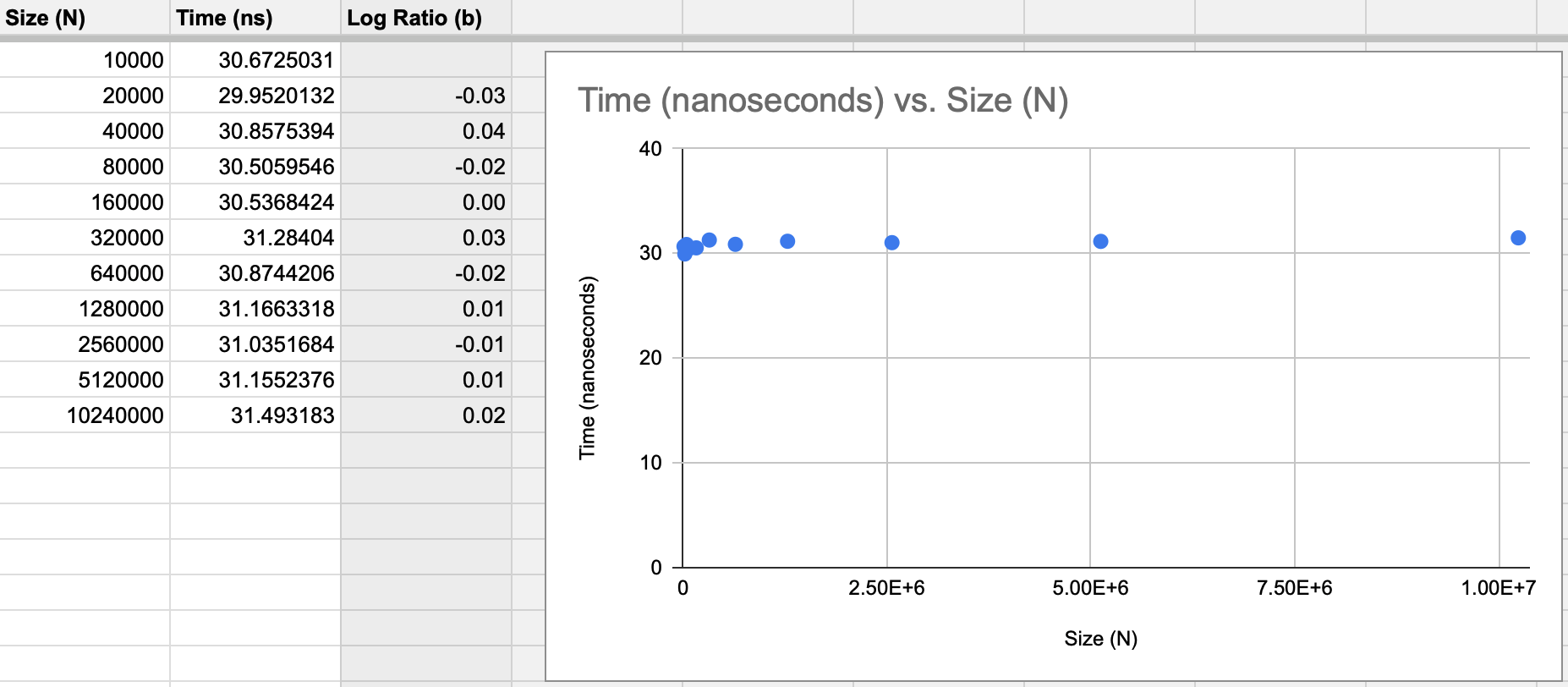

Here are my results for the retrieval of an element by index, calculated using 10,000,000 trials.

I ran the program multiple times, doubling the size of the data structure each time. I used the data to estimate the exponent $b$ in the growth rate equation, as shown in the third column of the table.

You are welcome to use this spreadsheet to perform the log ratio calculations, and to generate a graph of the data. If you use the spreadsheet, inspect the forumula in the third column, so you understand how $b$ is calculated.

My experiments suggest that:

That is, retrieval of an element by index is a constant order operation. Based on the data, it seems that $a \approx 30$ nanoseconds. So:

Now, this constant may differ from one computer to another. So we are more interested in the Big Theta runtime complexity, which is:

Your task is to complete similar experiments and calculations for the following:

• Array: Retrieval of an element’s index
• LinkedList: Retrieval of an element’s index
• LinkedList: Retrieval of an element by index

Bonus Task: Inserting an element

If you finish early, you should modify ArrayExperiments.java and LinkedListExperiments.java to perform an additional experiment: testing the time it takes to insert an element into the beginning and middle of each data structure.

Submit

This code won’t be autograded, but you should submit:

• The code for your ArrayExperiments class
• The code for your LinkedListExperiments class

This lab will be graded for completion, as part of your attendance and participation grade.

If you worked with a partner, be sure to note that in a comment in your code!
