Homework 4: Drawing Fractals
In this homework, you will draw a fractal tree. Fractals are recursive geometric patterns, which occur in nature, mathematics, and engineering.
Instructions
We encourage you to work with a partner.
Task 1: Download Starter Files
fractals.zip contains the starter files for this assignment.
Task 2: Implement Tree.java
You will use the textbook’s StdDraw library to draw your fractal tree. The only method you need to use is the StdDraw.line()
method, but other methods may be helpful for debugging or customizing your tree.
To draw a tree, you should implement the drawBranch()
method, which will recursively call itself:
/**
* Draws a tree branch, and potentially sub-branches as well.
*
* @param x the x-coordinate of the base of this branch
* @param y the y-coordinate of the base of this branch
* @param size the length of this branch
* @param angle the angle of this branch
*/
public static void drawBranch(double x, double y, double size, double angle)
Your main method should contain:
public static void main(String[] args) {
drawBranch(0.5, 0, 0.2, Math.PI / 2);
StdDraw.save("tree.png");
}
After you’ve implemented drawBranch()
, this main()
method should draw the tree so its base is at the bottom-center of the canvas (i.e., at coordinates (0.5, 0)
), with a trunk length of 0.2, pointing upwards. Then, the drawing is saved to the file tree.png
.
The end result should look like one of these examples:

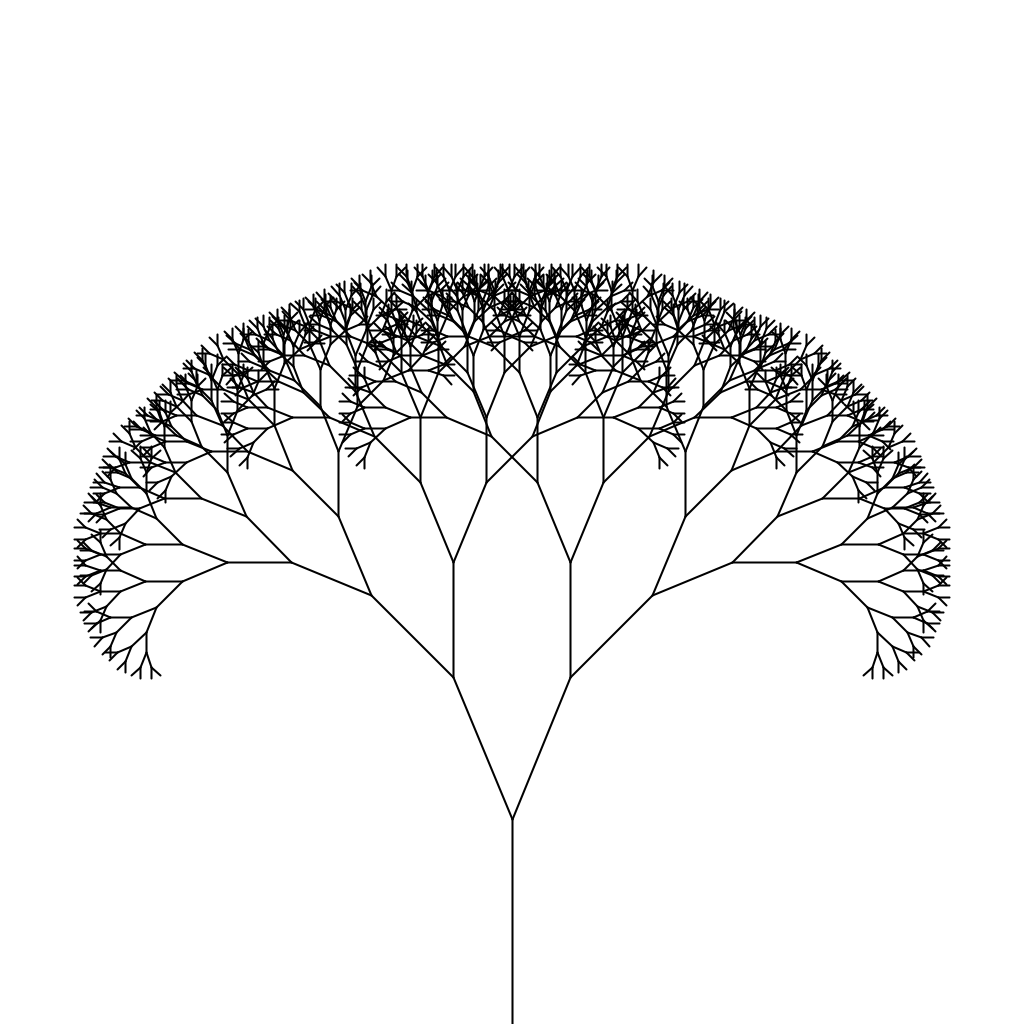

![A fractal tree.](tree3.png)
![A fractal tree.](tree1.png)
![A fractal tree.](tree2.png)
I recommend following these steps to implement drawBranch()
:
- First, draw a simple branch, without any recursive calls. This branch should be just a straight line. It should start at the appropriate coordinates, be of the appropriate length, and point in the direction specified by the angle.
- You should use
Math.sin()
andMath.cos()
to calculate the endpoint of the branch, based on the angle. Remember your Trigonometric ratios!
- You should use
- Next, add two recursive calls to
drawBranch()
to create two smaller branches. These branches should angle to the left and right.- Be sure to include a base case, or else you will make an infinite number of recursive calls! The
size
parameter can be used to define the base case: you don’t want to draw extremely small branches. - Since
Math.sin()
andMath.cos()
work with radians, it may be easier to write your code with radians. Refer to the unit circle for conversions between degrees and radians:
- Be sure to include a base case, or else you will make an infinite number of recursive calls! The

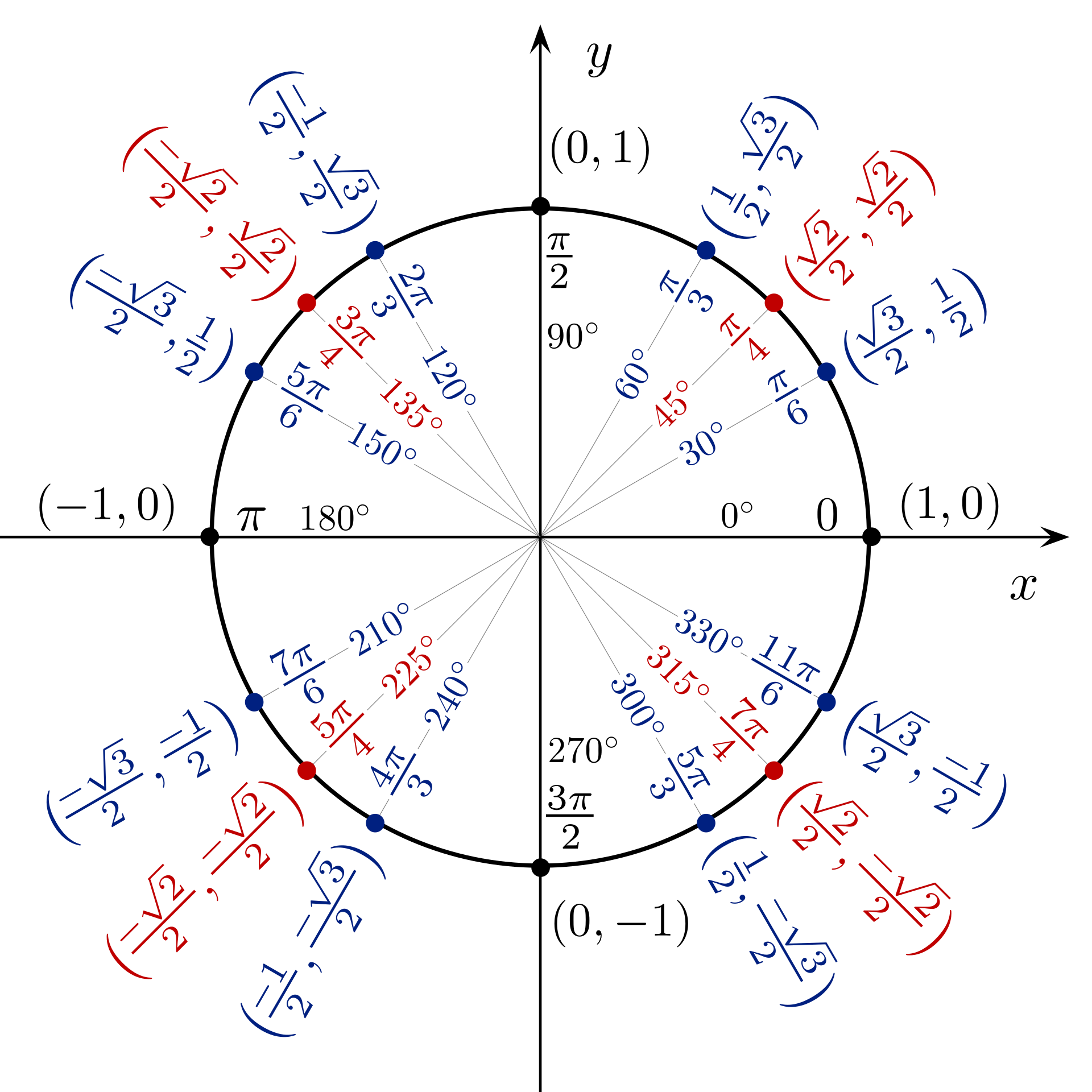

![A unit circle showing conversions between degrees and radians.](unit-circle.png)
Hint: Consider annotating your output with a grid, dividing the drawing area into 10 x 10 squares. This will help you compare your program’s output to calculations you do by hand.
![A fractal tree, drawn on a 10 x 10 grid.](tree3-annotated.png)
Hint:
When debugging with print statements, print the angles as degrees. You can use Math.toDegrees()
.
Note: If you finish early, customize your tree. Consider adding color or variable branch width. However, don’t make changes that would violate self-similarity.
![A fractal tree with brown branches and green leaves.](tree3-colored.png)
Submit
For full-credit:
- Your code must call itself recursively
- At least five recursive calls should be visible in your output (i.e., there should be at least five branches from the tree’s trunk to its leaves)
- Your output should exhibit self-similarity, as in the examples above
Upload the following files to Gradescope:
- Tree.java
- tree.png, showing your code’s output
- A completed readme.txt file, including your names, etc.
Also, be sure to indicate your group member on Gradescope.
Learning Goals
- Practice recursive programming
- Practice using Java drawing libraries
- Practice debugging
