Midterm Project - Emergence

Preliminaries

In your work on this assignment, make sure to abide by the collaboration policies of the course.

Don’t forget to use docstrings and to take whatever other steps are needed to create readable code.

If you have questions while working on this assignment, please come to TA help hours or post them on Piazza.

due by 10 p.m. EDT on Saturday, October 28, 2023

Midterm Project: Emergence

80 points; pair-optional and group-of-three optional

You may complete this project with partners. See the rules for working with a partner on pair-optional problems for details about how this type of collaboration must be structured.

This project is required and cannot be dropped. It will be part of the Project portion of the final grade.

In this project you will write a computer simulation of a phenomenon known as Emergence. Emergence phenomena can be observed almost everywhere from philosophy, systems theory, science, and art. Emergence occurs when an entity is observed to have properties its parts do not have on their own. You can read more about this here: http://en.wikipedia.org/wiki/Emergence.

The objective of this part is for you to write a program that simulates the emergence behavior in a two-dimensional dot grid. As part of the scientific investigation process, you must observe our example data and come up with a hypothesis about the observations, and then test your hypothesis in your code to check if you get the same results.

The data for you to observe is within the project PDF file: CS120-EmergenceProject.pdf

GUI Visualizer

To start, download the starter code emergence.py and make sure you can run it.

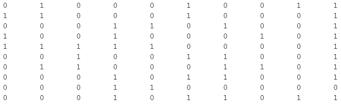

The starter python file contains Emergence class and visualizer code to display the dot grid. The initializer of this class defines the gridcolors property which represents dot grid as a two-dimensional list. Internally, a dot grid is represented by a two-dimensional data list of 0 and 1 values. Display-wise, it is a 2D dot grid on the canvas with the color of each dot depending on the value in the corresponding element of the data array. The figures below show an example dot grid including its internal data values and corresponding graphics display, with blue for 0 and red for 1.

You will need to modify the starter code to draw two-dimensional array of dots on the canvas satisfying the following requirements.

1. dots are nicely spaced on the grid.
2. the dot grid is centered on the canvas.
3. The ratio of the grid width and height over the canvas width and height is defined in the constant TOTALGRIDRATIO, which is 0.8.
4. The __init__ method takes two arguments one for the grid size (i.e. the number of dots in each dimension, should be between 2 and 10; the default value is 10), and the other for the grid type (0 for an example grid and the other for a random grid).

The Emergence class contains starter code for the computeGridLayout() and drawGrid() methods. The computeGridLayout() method computes the coordinates of the dots as follows:

1. Computes the width and height of the grid and canvas.
2. Computes the x and y coordinates of the top left corner of the grid.

The drawGrid() method is to actually draw the grid dots on the canvas. This method should use a nested for loop to draw one dot for each array element, at a proper position with the proper color.

You will need to complete these two methods.

If you have trouble running the GUI Visualizer code on your computer, we will provide a text-based version on Piazza.

Simulating Emergence

Your task on this part of the project is to complete the updateEmergenceGrid method that simulates the emergence behavior in a two-dimensional dot grid. As illustrated in the slides, at each subsequent step, each dot checks its neighbor’s colors and determines what its own color will be. The challenge that you are facing in the first part of the final project is that we don’t tell you the color update rules, chiefly.

• What are a dot’s neighbors?
• How does a dot decide its own color at the next step based on its neighbors’ current colors?

You need to use the scientific investigation process to try to discover the rules

• First, observe some example data
• Develop your hypotheses
• Test your hypotheses through programming
• Refine your hypotheses if needed

You need to write code to update the grid with your emergence rules and redraw the grid if at least one dot in the grid has a new color. Thus your main task is to identify and implement grid color update rules. Develop your algorithms before programming and consider using helper methods provided for you on the starter code.

For the example grid, if your hypothetical rules for updating grid colors produce the same intermediate and final grids as given in the slides, congratulations! You have discovered correct update rules. Otherwise, make (more) observations of your grids and the example given in the slides, revise your update rules and implement these new rules. Keep your code for old rules in your program so that we can see your progress and efforts in developing the rules.

The autograder will check that your grid update rules match our rules for the example grid.

Project Report - Jupyter Notebook

20 points; pair-optional or group-of-three-optional
